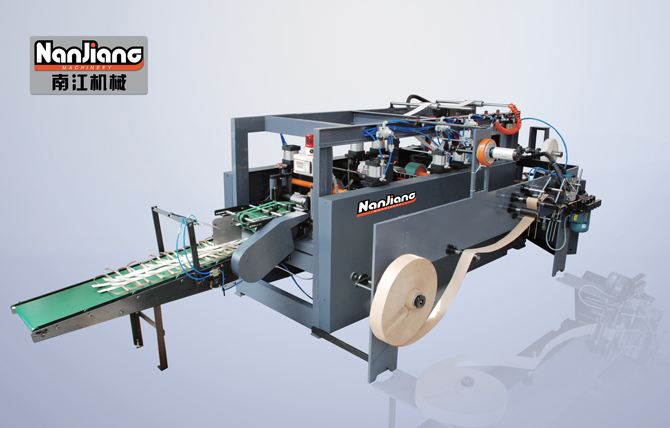

WFD-100-1 High Speed twist-rope & Flat-belt handle machine
WFD-100-1 圓繩扁…



Performance And Characteristics:

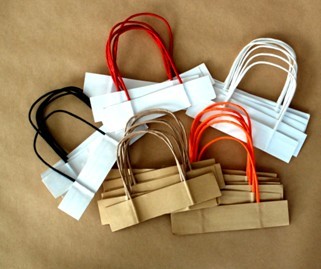

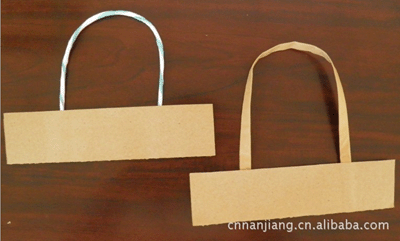

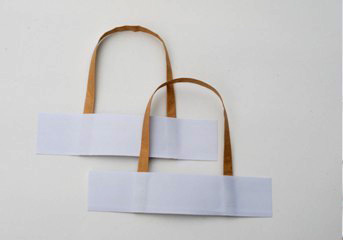

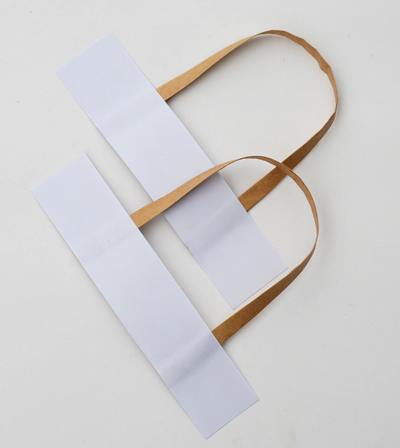

This is a high-speed machine for producing paper handles, it pastes twist paper ropes and paper together for handles, then cut off then in separate automatically. Besides, it has the functions of handles counting, handles putting in order and handles colling. It is and ideal supporting machine of paper Handbag Making Machine.


All type of paper handle machines have extra option with long convey blet which is able to apply glue on handle surface and could paste into bags directly by workers.


Main Technical Parameter

Model

WFD100-1

Paper weight For handle

100-120g/m2;

Paper weight For belt

100-120g/m2.

Length of rope(belt)

330-370mm or 380-420mm

Diameter of paper rope

3-5MM

Width of paper flat  belt

10-12mm

Width of two paper roll

90-100mm

Speed

100-300pcs/min

Power Consumption

10KW

Machine dimensions

6000*1800*1800MM

18000*1800*1800MM( extended conveyer belt)

weight
