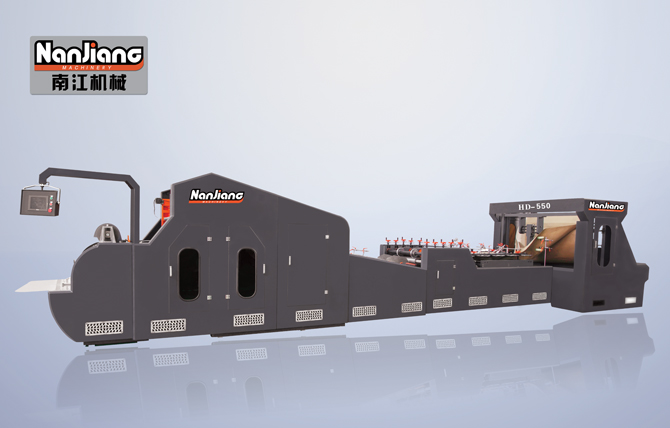

This is a new high speed square bottom paper bag machine. Its advantages are high speed, high efficiency and wide-range adjustment; In addition, it has the international advanced technology and easy to operate, lift raw materials automatically, correct errors automatically and control tension automatically, and all the processes are done by PLC. This machine is the quintessence both of home and abroad.
|
Model
|
HD-550
|
|
Paper Roll Width
|
630-1450mm
|
|
Tube Length
|
330-750mm
|
|
Bag Width
|
220-550mm
|
|
Bottom Width
|
80-250mm
|
|
Paper Weight
|
90-160g/m2
|
|
Max. Paper Roll Diameter
|
ф1200mm
|
|
Material Core Diameter
|
ф76mm
|
|
Production Speed
|
80-150 bags/min
|
|
Total Power
|
20KW
|
|
Machine Weight
|
13000 kg
|
|
Machine dimensions
|
135000*2400*2300mm
|
