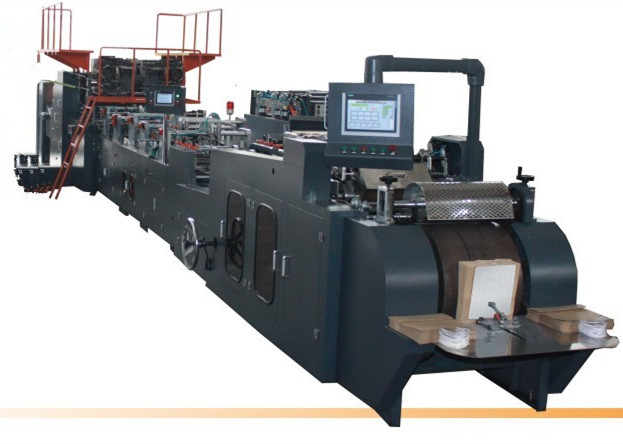

HD-450 Sheet Fed Paper Bag Making Machine with top fold





   HD-450 machine is sheet fed and with top fold,which is developed based on WFD450-1 machine.It adopts auto paper feeding system to keep sheet paper feeding continuously.

   It uses printed sheet paper as raw materials and makes the paper bag with top fold,as well as the double holes punching at one time.So that it can save labor cost to achieve higher working efficiency. This machine adopts touch screen and PLC control system with higher precision and speed.It is the best production line for making shopping bags, gift bags, super market bags, food bags, etc.

   It is with creasing function and adopts hot melt glue system and can make many sizes of paper bags. Suitable paper: kraft paper, white cardboard, art paper, laminated paper.



 1.1 Machine details

 Paper-fed type  Producing speed  Total power  Weight  Dimention
   (bags/min)  (kw)  (ton)  (LxWxH mm)
 Sheet fed  40~60  15  12  13500x1800x1950



1.2 Paper details

 Paper Gram Weight  Paper Size(mm)  Paper Size(mm)
 (g/㎡)  Min(LxW,mm)  Max(LxW,mm)
 120~250  545x350  1185x600



1.3 Bag details

 Bag tube length  Bag width   Bag bottom width
 (mm)  (mm)  (mm)
 350~600  220~450  80~170







Video:
